Our Guide to RESEARCHING and INSTALLING a 12V Van Air Conditioner

Since our van, Summit, is our full-time home, we knew we needed to install a van air conditioner. While we planned toย chase 80,ย we knew that inevitably, there would be heat spells or tough nights sleeping. An AC gives us flexibility and comfort while living on the road full-time! In this article, we will go over our research, which led us to purchase our AC, what AC we installed, and our thoughts after living with it on the road!

Note: We use affiliate links which provide us a little kickback each time you use one of our links and make a purchase, without any additional cost to you. We do not recommend products that we donโ€™t already love or have heard great things about, so you can trust weโ€™re only suggesting great products to you.

What kinds of van air conditioners are available?

There are a few different options for van air conditioners, and they are split into two categories: 120V AC-powered air conditioners and DC-powered air conditioners. Both have pros and cons, so letโ€™s break them down individually.

120V Air Conditioners

AC-powered (alternating current) or in the US, 120V Air Conditioners have been the standard for many years. They are very strong, and have a long history in our homes and on various RVs and vans over the years.

Because they’ve been on the market for so long, they are typically less expensive than the newer 12V air conditioners. They use more power than their 12V counterparts, so they are a good candidate if you do not plan on boondocking often. If you are in a campground with access to shore power, you can run your 120V air conditioner for as long as you like.

Traditionally 120V air conditioners are large and heavy, which are two qualities not really desirable on Campervans.

DC Air Conditioners (12V, 24V, 48V)

DC-powered (12V, 24V, and 48V) air conditioners have come out recently as technology has improved. They are expensive but have a much lower footprint – both in power consumption and physically compared to 120V air conditioners.

The differences in 12V/24V/48V are mostly educational and depend on your build. If you run a 24V electrical system, youโ€™ll most likely want a 24V air conditioner. Typically, with higher voltages, youโ€™ll see better efficiency, although you would not normally implement a 48V AC on a 12V electrical system as, with any sort of conversion, youโ€™d lose any gains. We chose a 12V air conditioner because we are installing a 12V electrical system in our van, Summit.

Van Air Conditioners Compared

Air Conditioner TypeAverage CostAverage Power Consumption (Watts)Average BTU
DC Power (12V) (e.g. )$3,000500W8,000
AC Power (120V) (e.g. )$1,5001500W14,000

Why did we decide on a Van Air Conditioner?

Ollie on our bed, the most temperate part of the van build.

Since our van Summit is our full-time home, getting a van air conditioner was pretty much determined right off the bat. We traveled with our dog, Ollie, and keeping her comfortable while we’re away from the van is of the utmost priority. So we knew we had to get an air conditioner from the start of our van build.

We hike and explore regions where dogs are not allowed. In these situations, on hot days, we wanted the capability to keep the van cool while Ollie waited for us to get back.

Hiking in Big Bend National Park, where dogs are not allowed.

An air conditioner will also greatly help the resell value if we decide to sell our van, so we felt that there was no better time than to install it while building out our van, even though there was a high upfront cost.

Top DC Air Conditioners on the Market (2025)

Well Known Brand

Dometic RTX200012V6800 BTU$3,0000

There is the Dometic 12V RTX2000, which is a well known brand in the RV and Van communities, however we have some friends with this AC and they told us that it isnโ€™t really for van life – rather was marketed to Truckers instead for some reason. The RTX2000 also has a high price and BTUโ€™s on the lower side. Even though the brand is well-known and reliable, we felt like we could find a better option for our build. Also, because of the uncertainty regarding intended use, if we had an issue, we would be concerned about dealing with the warranty.

The Budget Option

RecPro48V9500 BTU (with heater)$2,000

RecPro is a quality brand making components for all different parts of their van build. Here is their 48V low profile air conditioner! With a price tag of $2,000 itโ€™s 30% less than the 12V options while being 40% more powerful than the Dometic version! If we had a 48V system we would have probably considered this for our build. The inclusion of a heat pump would have been a great addition on those cold days.

Our Van Air Conditioner Choice

Nomadic X212V8100 BTU$3,0000

We chose the Nomadic X2 because it was powerful and has an extremely small profile. Needing only a 14×14 opening (the same as a MAXXAIR Fan) and having a small external profile meant we could fit our Starlink next to it, giving us maximum solar power. This allows us to run our AC for longer!

Read our article on Van Fans for another method of cooling your van.

How we Installed our Nomadic X2 12V AC

We installed our Nomadic X2 AC in one day and learned quite a bit from the installation! The manufacturer’s instruction manual was thorough, but there were a few โ€œgotchasโ€ that we wish we had known in advance. We hope you learn from our mistakes!

Required Tools

First off, youโ€™ll need to make sure you have all the required tools. We list here what we used each tool for, so if you have a slight variation but serves the same purpose then you shouldnโ€™t need to buy a new tool!

ToolWhat we used it for
Power DrillCreates the pilot holes for cutting into the van
Jigsaw with metal bladesCuts the panel out of the van
Step BitUsed with the power drill for the initial holes
Deburring toolFor cleaning up metal points
GrinderWe used this for tidying up any metal we couldnโ€™t get with the Jigsaw
Paintersโ€™ tapeOutlining the Cut Hole
Anti-rust paintUsed for all your newly cut exposed rust
PaintbrushFor applying the anti-rust paint
Mineral SpiritsA cleaning solvent that wonโ€™t damage your van
PPE: Goggles, ear protection, and gloves.Safety first!
Caulking gunFor cleaning up metal shavings it is not hard to get to locations
Magnet extender pole.Used for cleaning up any metal shavings in hard to get to cracks
Shop vacFor cleaning up metal shavings, it is not hard to get to locations
Scotchbrite PadScuffing the vanโ€™s glossy paint before applying adhesive

Bench-test your air conditioner

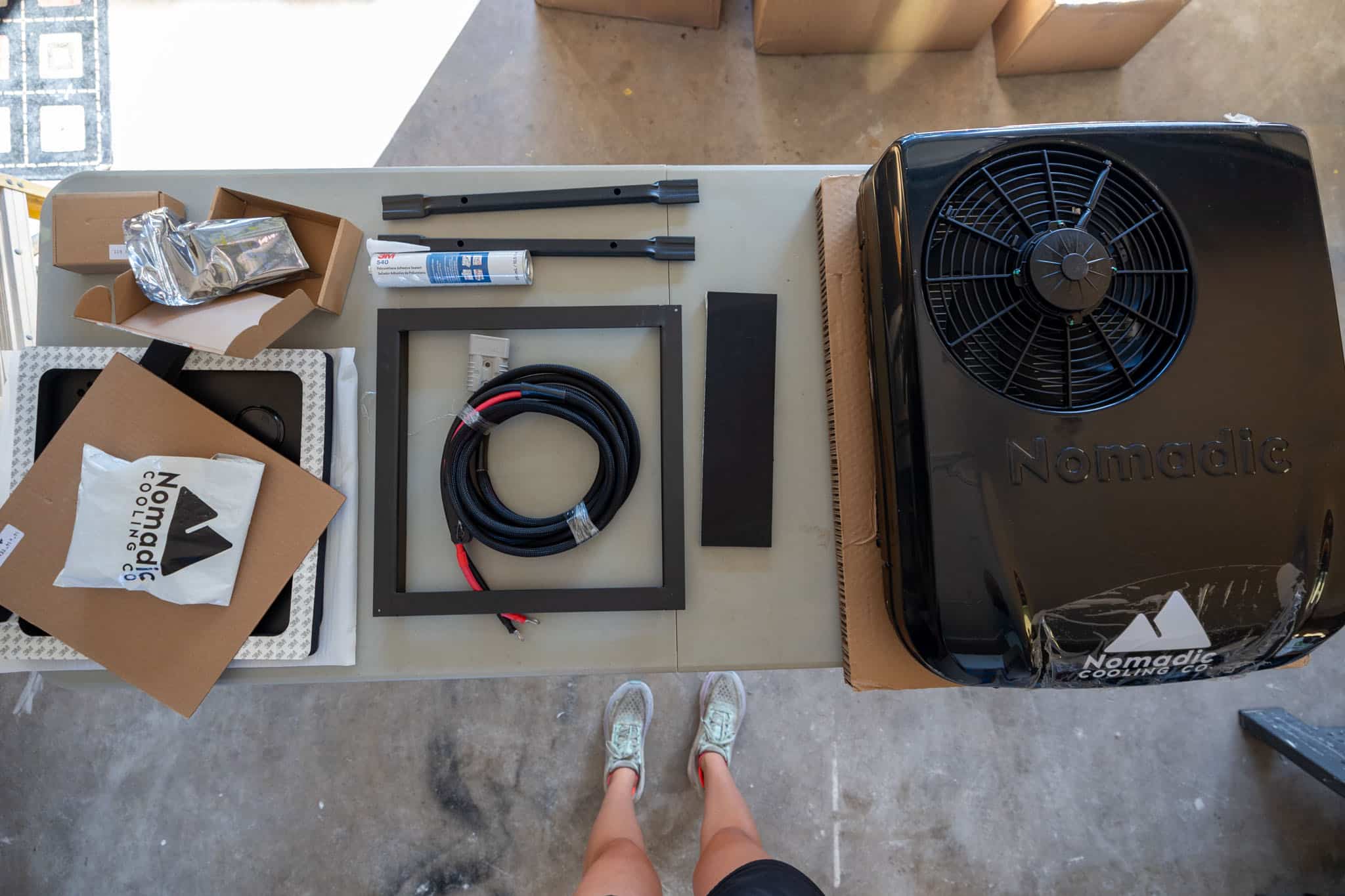

The first step in installing the Nomadic AC is to verify it works. You donโ€™t want to go through the long process of cutting into your van, sealing the gasket, attaching the AC and then finding out it has some defect! To prevent that we do whatโ€™s called โ€œbench testingโ€ which (as it sounds) is simply placing the AC on a bench, attaching it to power, and ensuring it works.

We bench-tested our AC using our extra starter battery.

Key Points:

  1. Ensure your AC is faced right-side-up. They are only meant to be run one way.
  2. Ensure your power connections are secure, and you are using a fused power line – we donโ€™t want any sparks or to damage the AC in this test.
  3. Check the wires to ensure you donโ€™t accidentally pinch any wires when you place the AC on the bench.

Make a Template

Next up is making a template for your AC. If you purchased the DIY install kit, it comes with a 14×14 template.

Key Points:

  1. Our 14×14 template was more like 14×14.25 so there is a little wiggle room.
  2. Keep in mind that the interior will be covered by trim so just try to get as close to 14×14 as possible but donโ€™t stress the small stuff.

Determine the exact location for your air conditioner

There are a couple things to keep in mind when determining where to mount your air conditioner. The first is, thinking about your use of the van, where makes the most sense? Secondly, due to your roof arrangement, where can your Air Conditioner live?

For us, we installed AC primarily for those heat waves and to help us sleep at night. This coincided with our roof layout and it fight in the farthest aft segment of our ceiling.

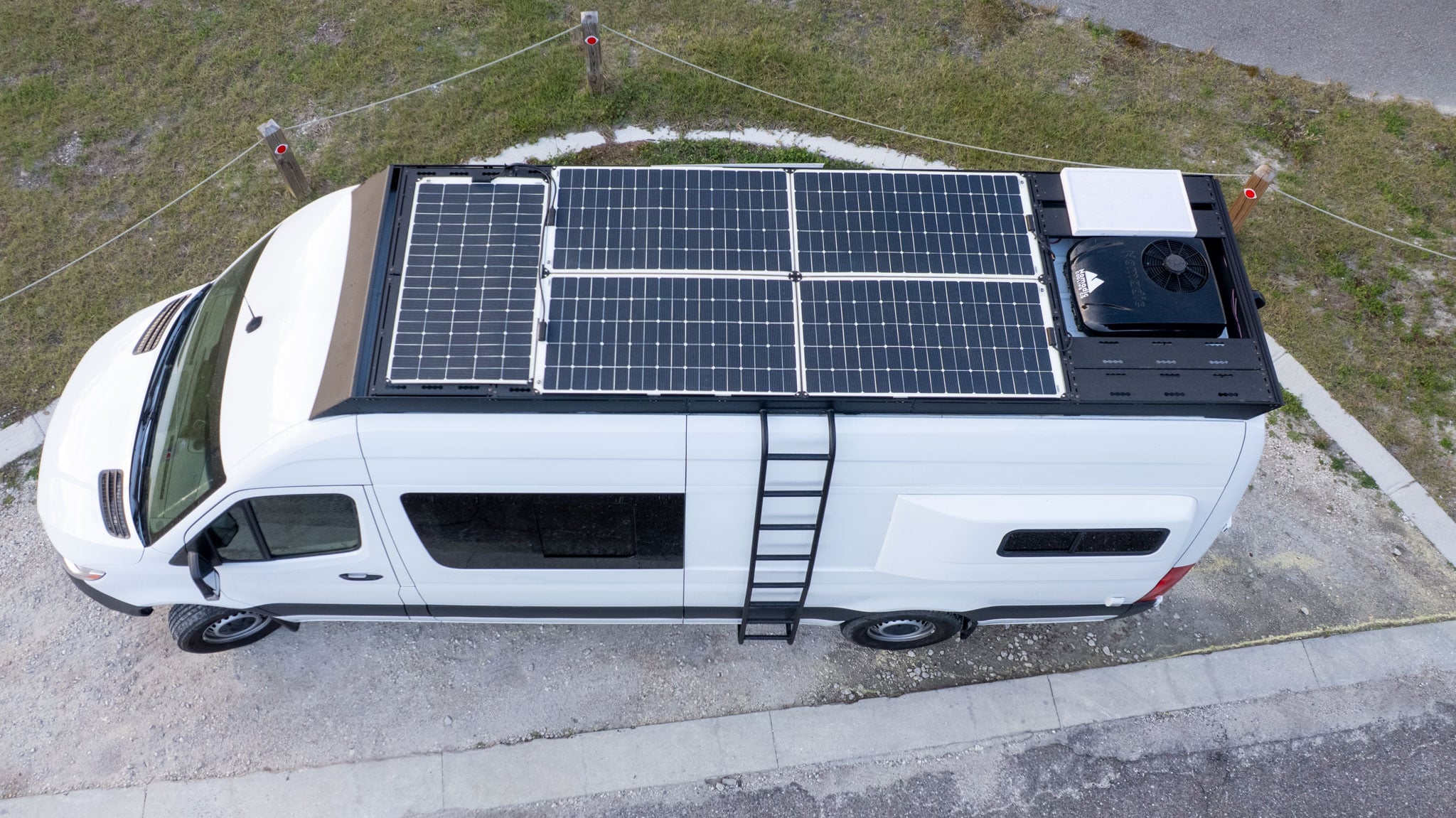

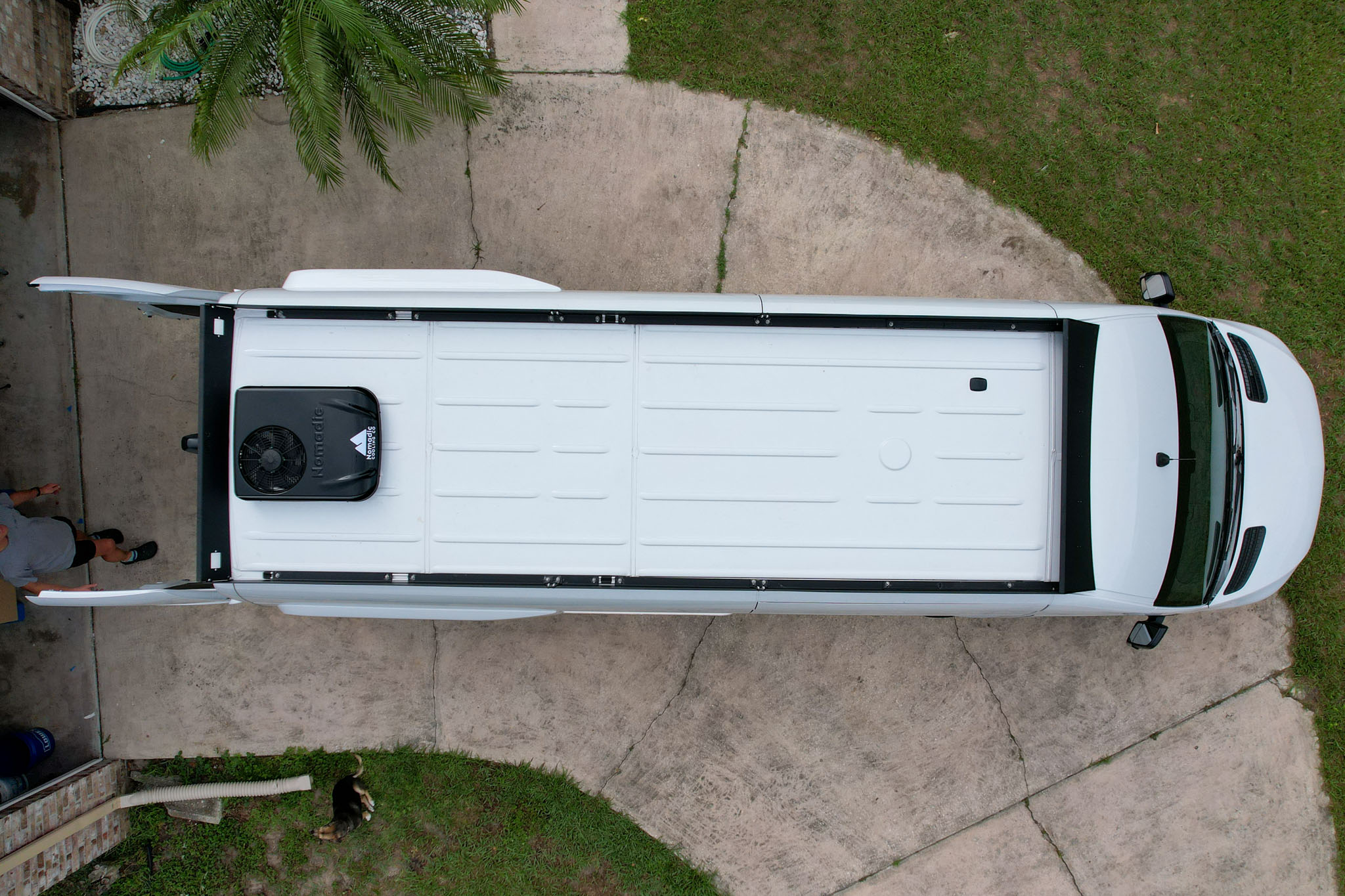

Here is the final positioning of our AC.

Key Points

  1. Center your AC in your ceiling. It is easiest to determine the center point from the roof, but youโ€™ll have to be careful of the beams inside. We determined the centerpoint from inside for this reason.
  2. Ensure you donโ€™t cut your ceiling support beams, those are structural!
  3. If you place it in the middle of your van, you may need the optional trim ring to support your roof. Plus, you’ll want to purchase the Nomadic X3 instead of the Nomadic X2 so it can cool more of the vehicle.

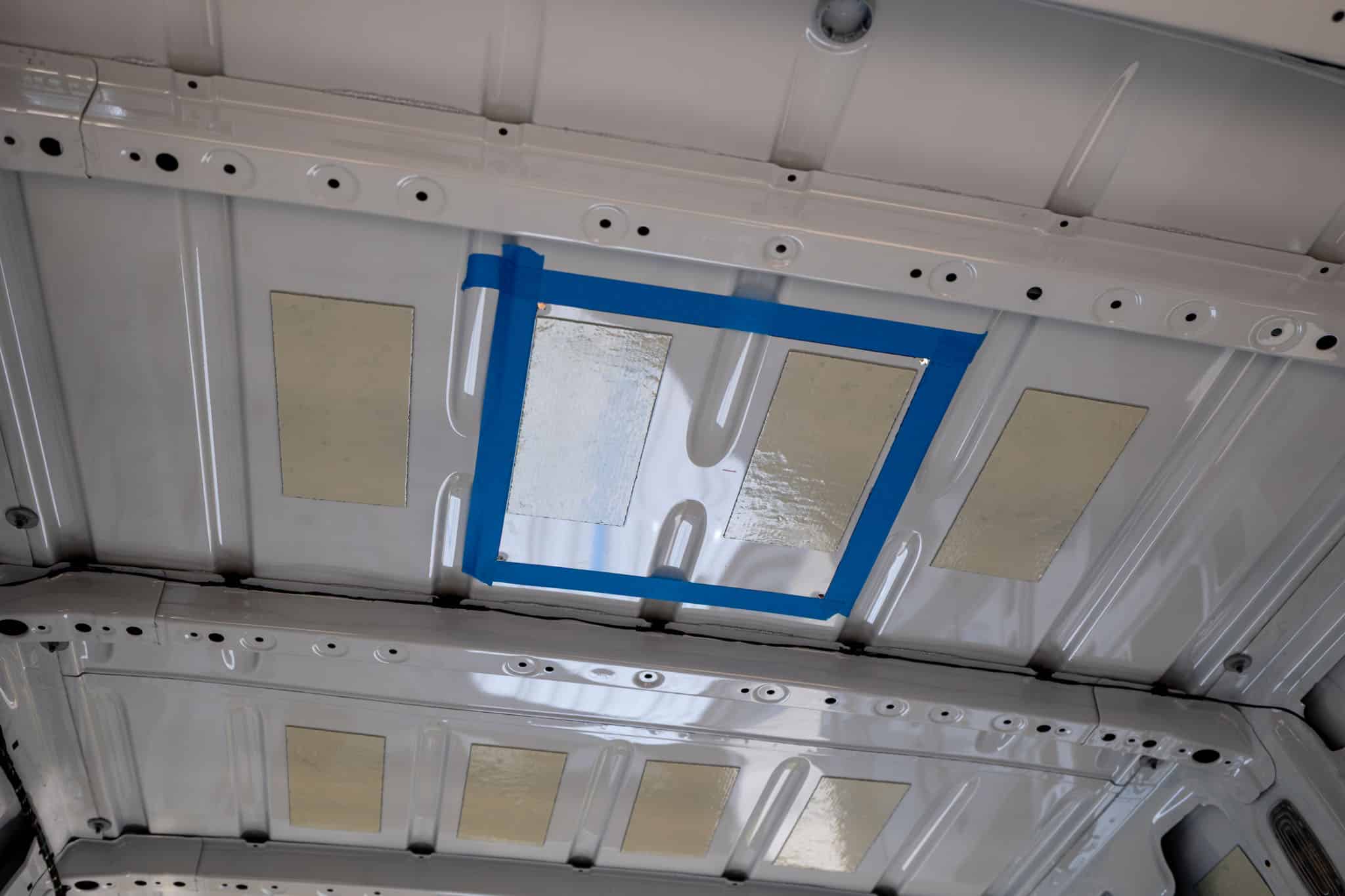

Prep for cutting

Before you cut the hole for you AC, you need to prepare your work area! An ounce of prevention is worth a pound of cure, so ensure you have all your materials on the roof and you have the inside of your van secure from metal shavings.

Key Points

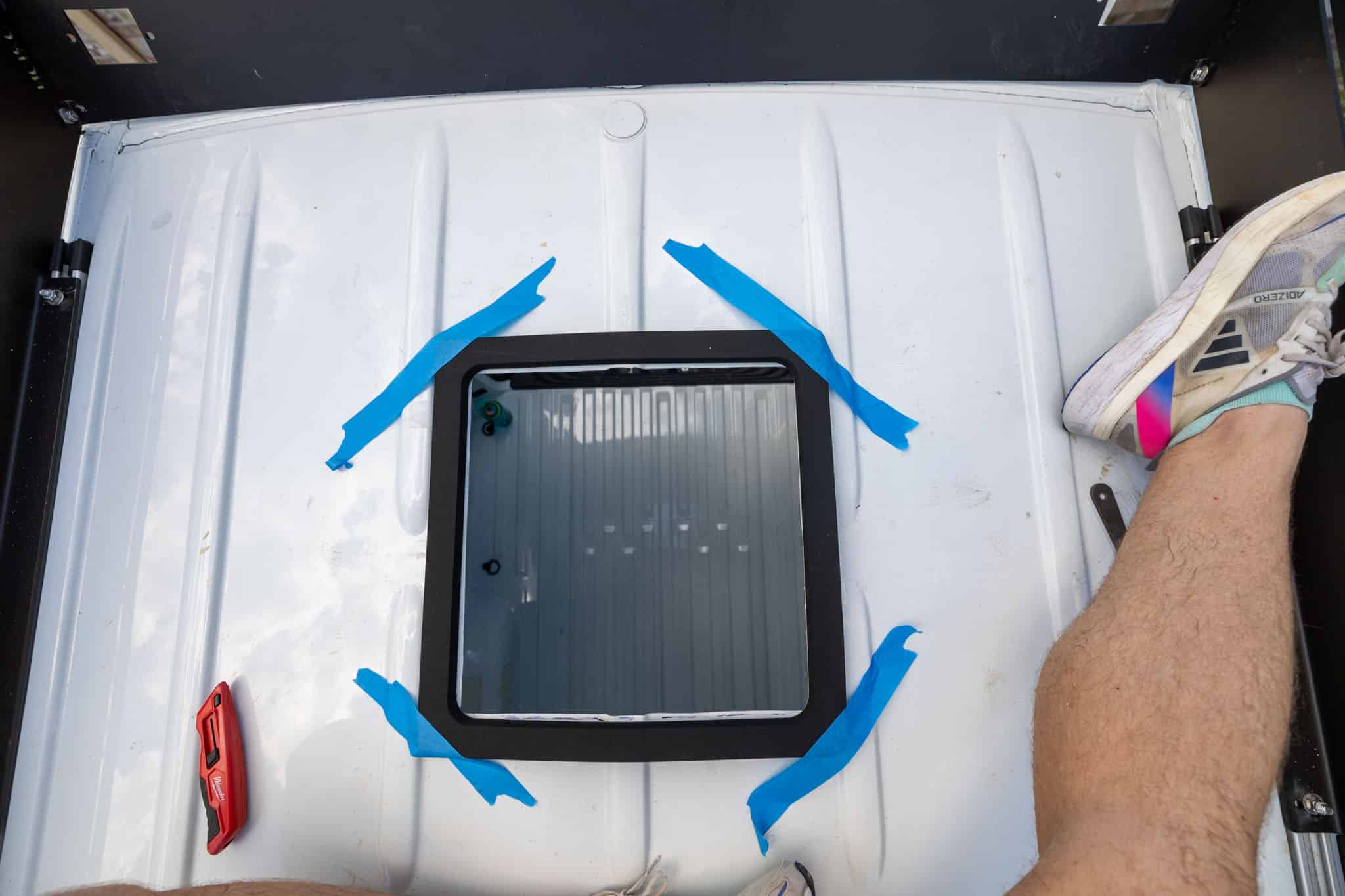

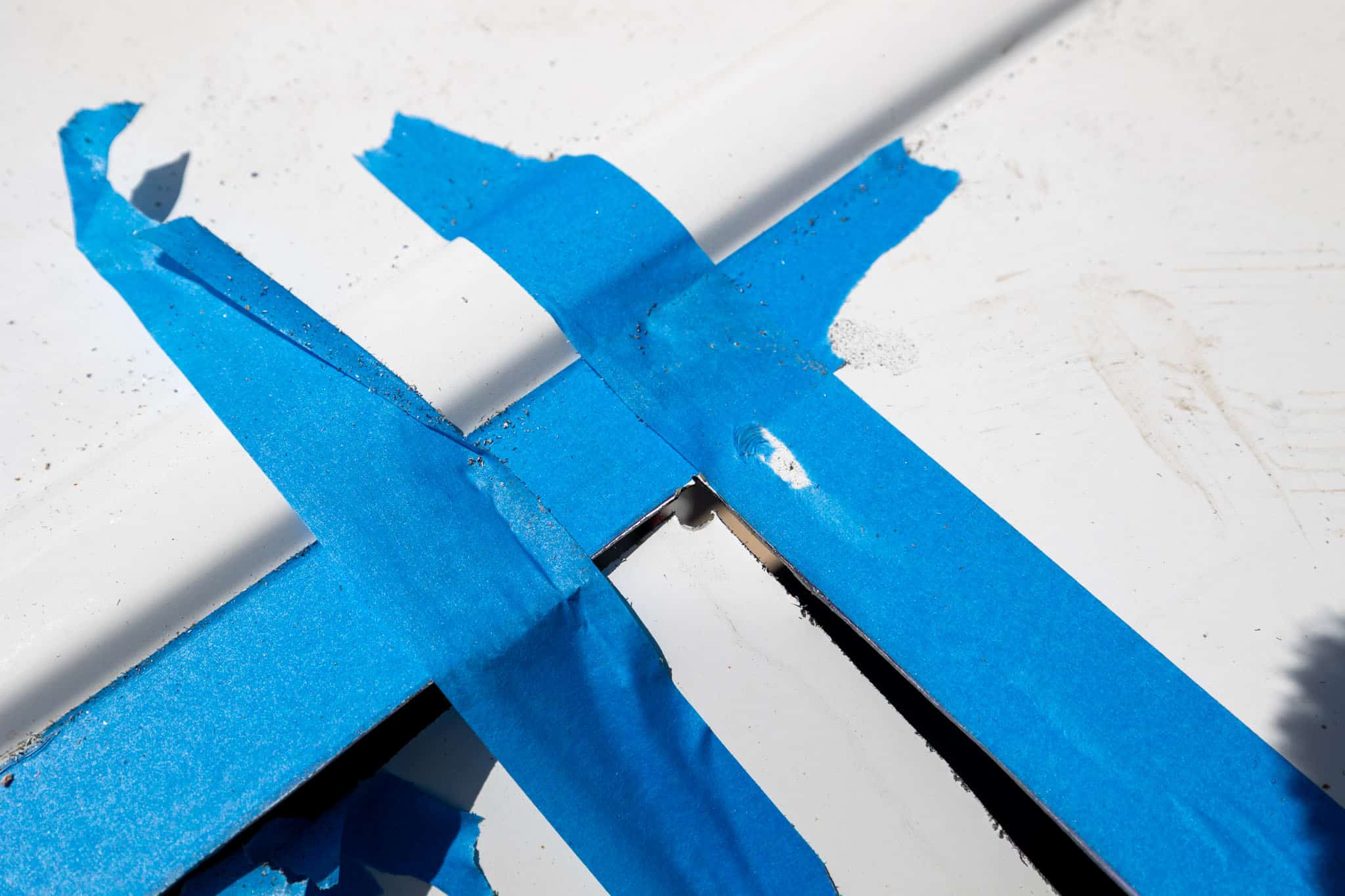

  1. Tape around your 14×14 opening on your roof. This helps ensure you have a clean cut line as well as adds protection from any unintended scratches.
  2. Affix a cardboard box, or garbage bag to your ceiling (using ducktape for example) so your 14×14 opening is fully contained. Any and all metal shavings should fall in, making clean up simple.

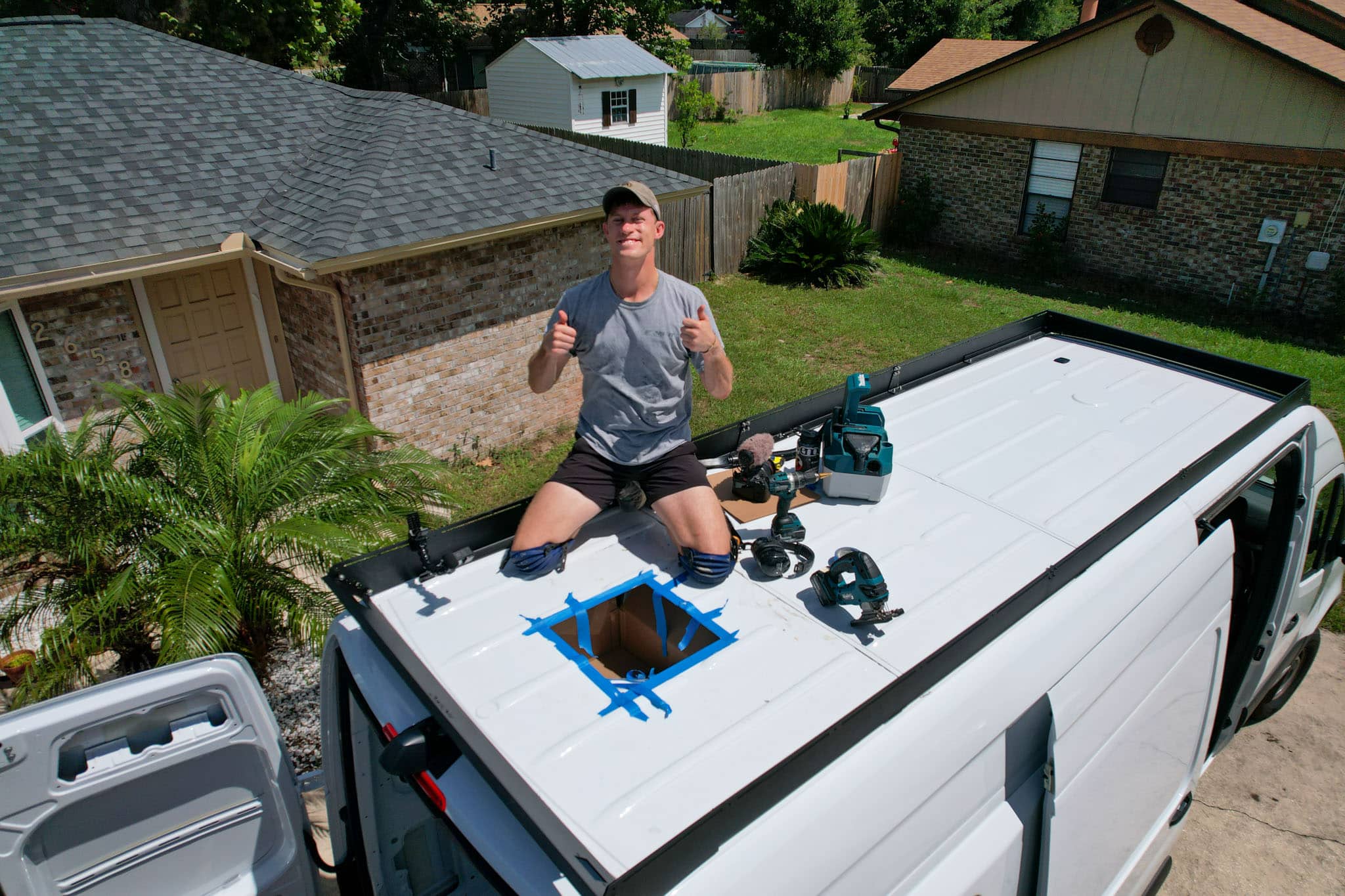

Cut the Opening

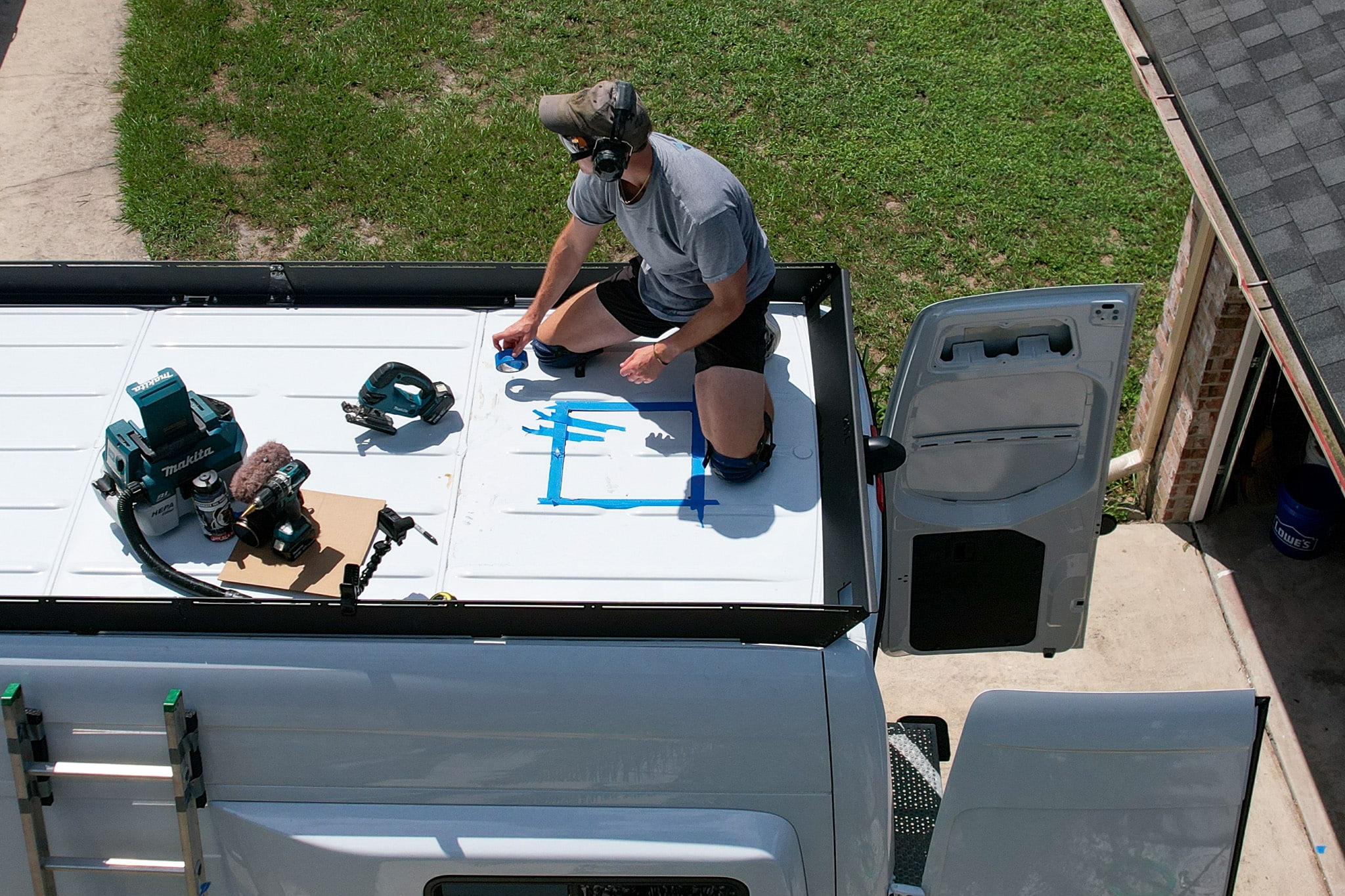

We started our cuts from the inside of the van. Once we determined the 14×14 location, we drilled 4 pilot holes – one in each corner. This was both an entry point for our jigsaw as well as ensured we got our corners correctly.

Then use your jigsaw with a metal blade to trace out your opening, effectively connecting the dots. Once you have 3 sides cut, tape the opening back to the van. This will keep the metal opening a bit more stable as you cut, otherwise it will wobble like crazy and affect your line.

After you finish the cut, remove the piece of metal and prepare the cut line. Youโ€™ll need to deburr the edges to remove any metal shavings and soften the edge. Finally paint the edge with some anti-rust paint to finish this cut step!

Key Points

  1. If youโ€™re doing this outside (like we were) make sure youโ€™re practicing sun-safety with a sun shirt and sunscreen!

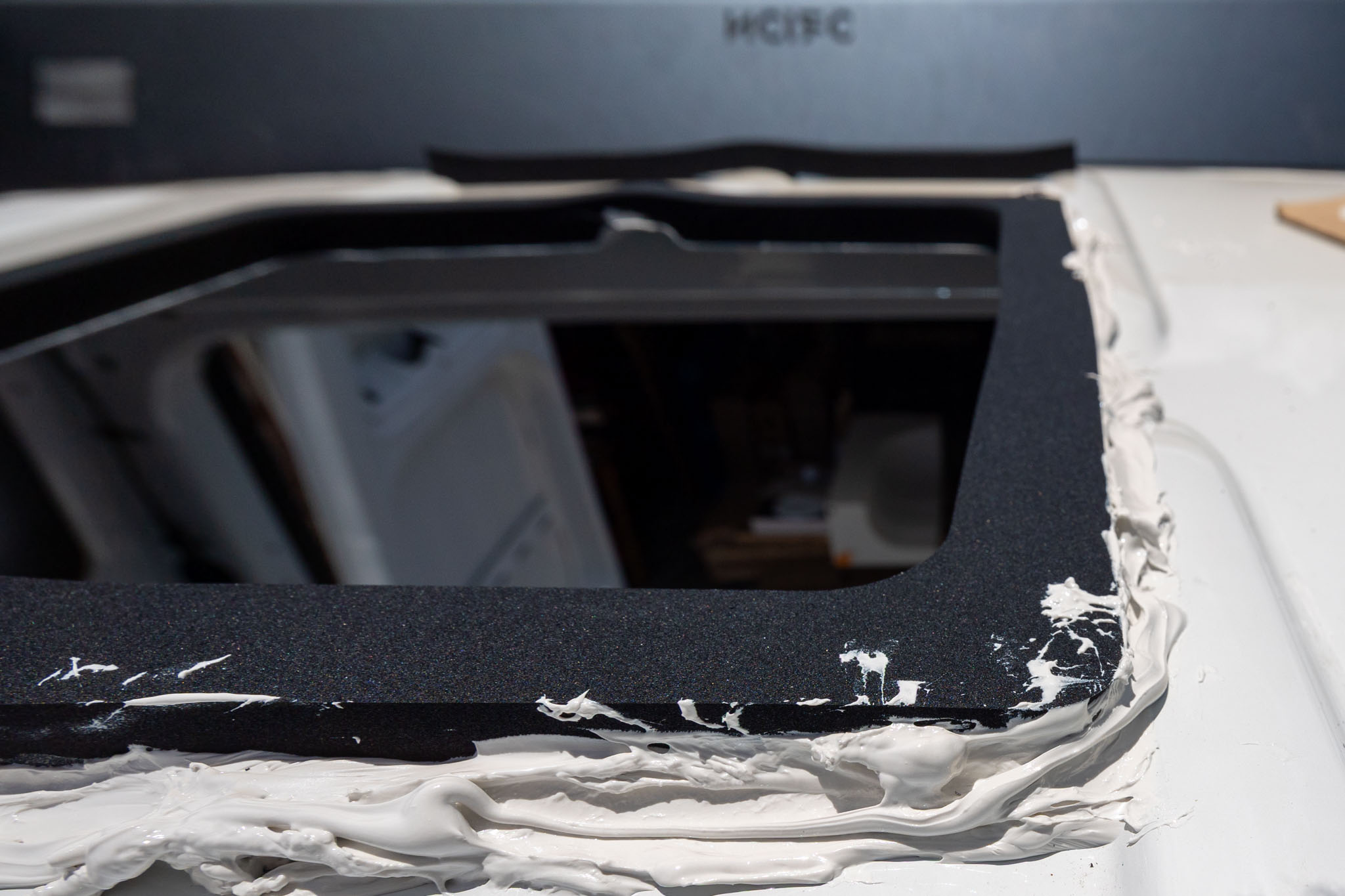

Lay Gasket for the AC

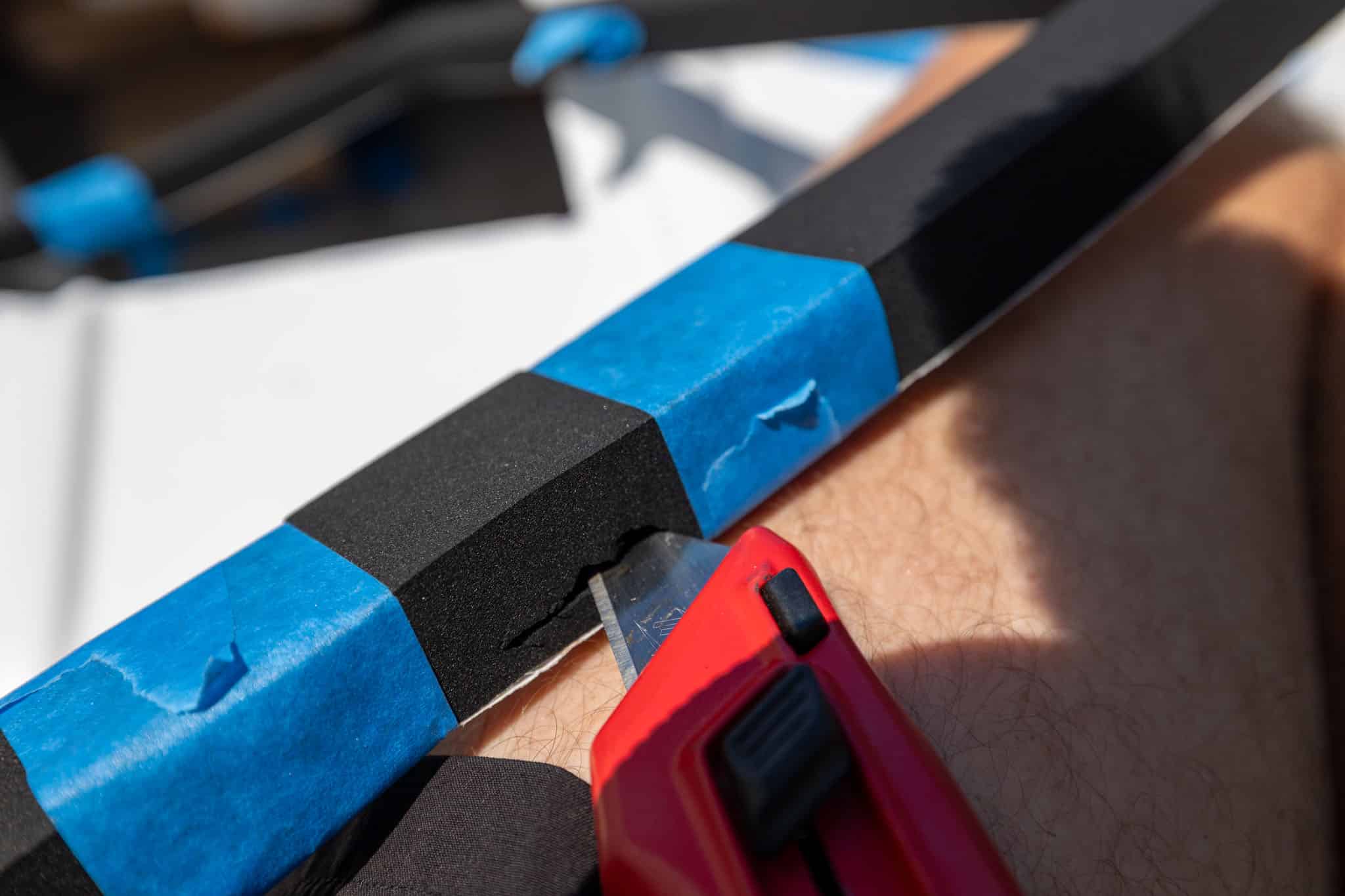

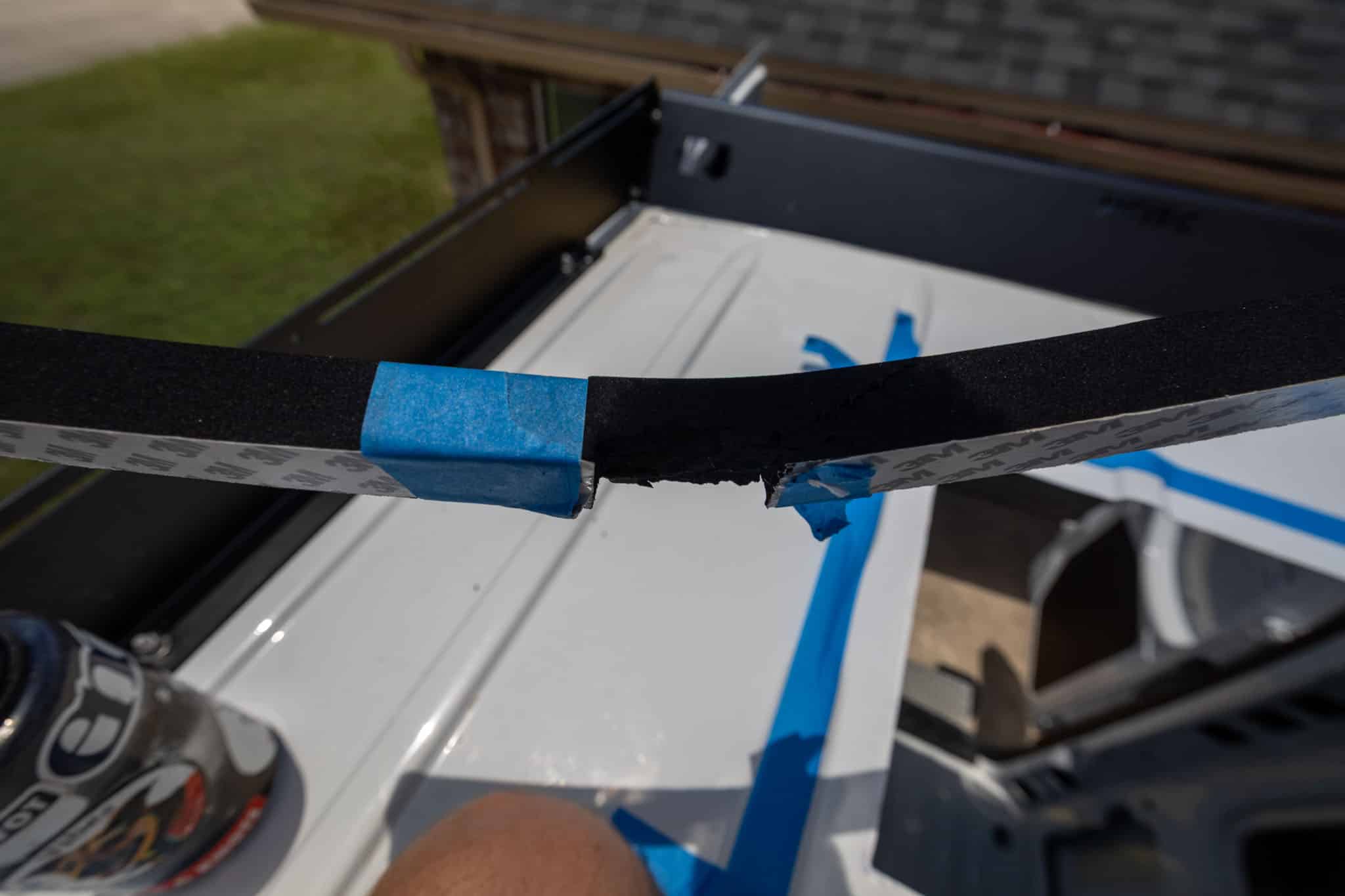

Now this step, was probably the most time consuming for us. You need to take the gasket, which is what is used to mainly seal the opening and trim it to any ridges on your roof so it lays evenly. I spent probably 30 minutes to an hour in the sun on our roof trimming a little bit with an exact knife and then test fitting it. I found that the blade didnโ€™t do a great job of cutting the gasket, but eventually it did the job – just took a little patience!

After your gasket is trimmed appropriately you can peel off the tape and affix it to your roof, just make sure your surface is clean! Next youโ€™ll take the provided sealant and route that around the gasket to fully seal and prepare the opening for your air conditioner.

The sealant was a massive mess for us because the Florida summer heat cured it faster than we expected.

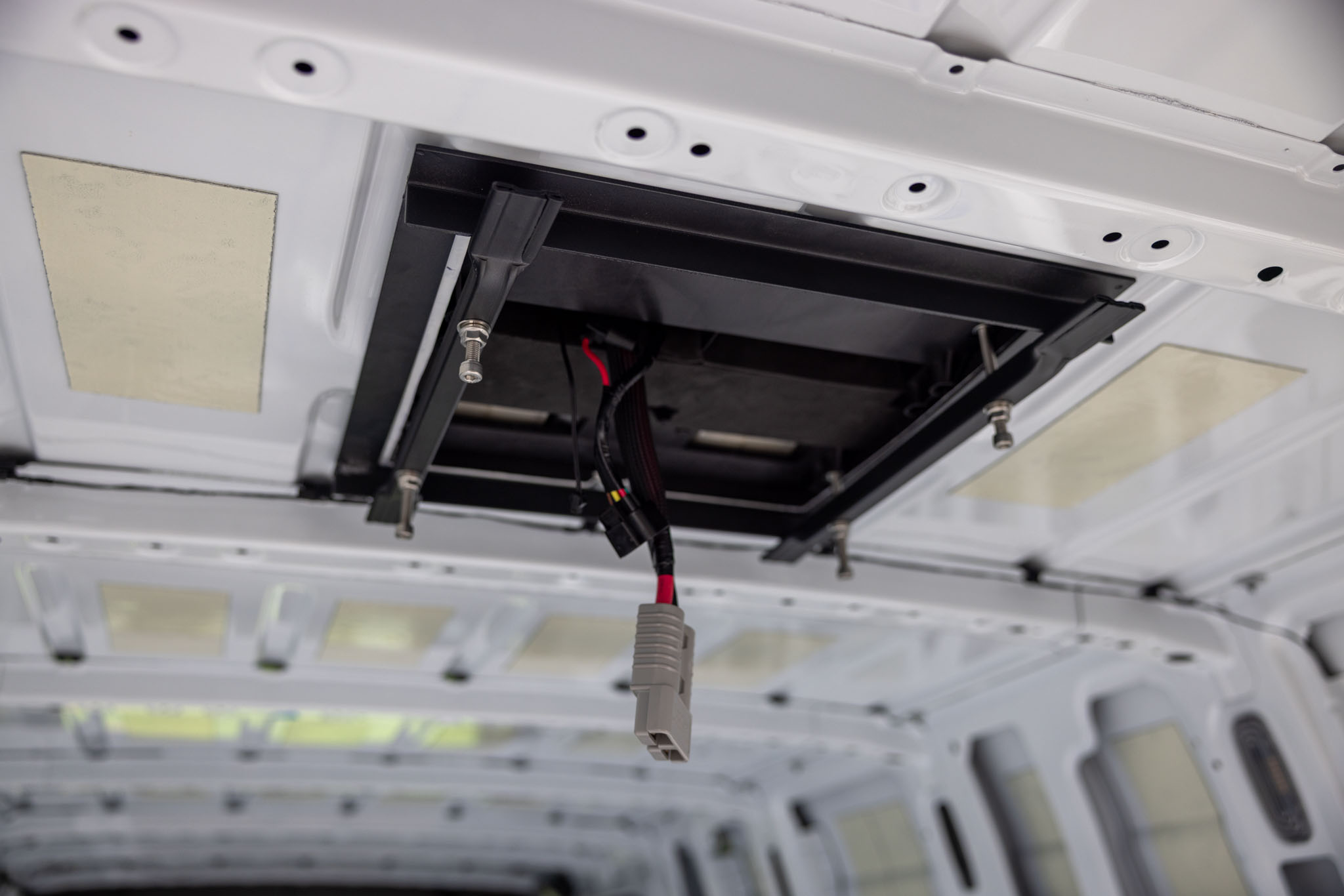

Install the AC

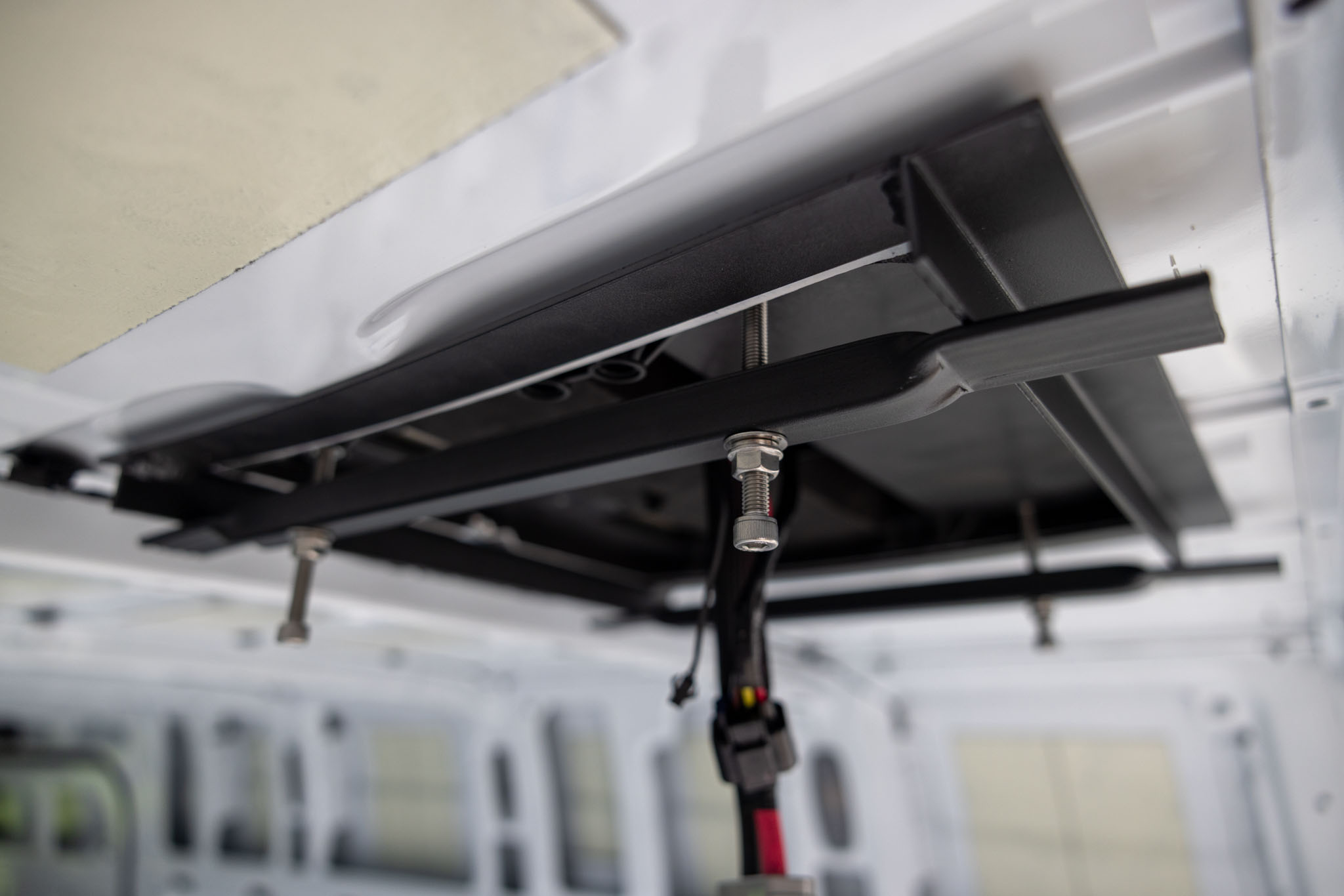

Now for the fun part, installing the Air Conditioner in the hole in our roof! This is also the easy part, essentially you just set the AC into the hole you just cut. Finally youโ€™ll use the bars to screw into the AC, what actually holds the AC onto your roof.

Key Points

  1. Getting the AC onto the roof was actually pretty difficult. Our van is lifted, and the AC, while not weighing much, is a bit unwieldy. We had three helpers to get it safely up on the roof, although it was still a bit sketchy!
    1. I set the AC on the top of a step ladder. My Mom helped ensure the AC didnโ€™t fall off as I climbed the ladder (thanks Mom ๐Ÿ˜) while Jen was on the roof, with a cloth prepared to pull the AC up as I pushed it from the ladder!
    Take your time on this step, as ladders can be deadly!
  2. It is very important to ensure you donโ€™t pinch any wires on this step. It helps to have a second person near by!
  3. DO NOT OVER TIGHTEN the bolts! Just go finger tight here otherwise you may strip your screws and void your warranty. It is very enticing to over tighten and โ€œsecure itโ€ but follow the manufacturers instructions to the T.

Frame the AC with Trim

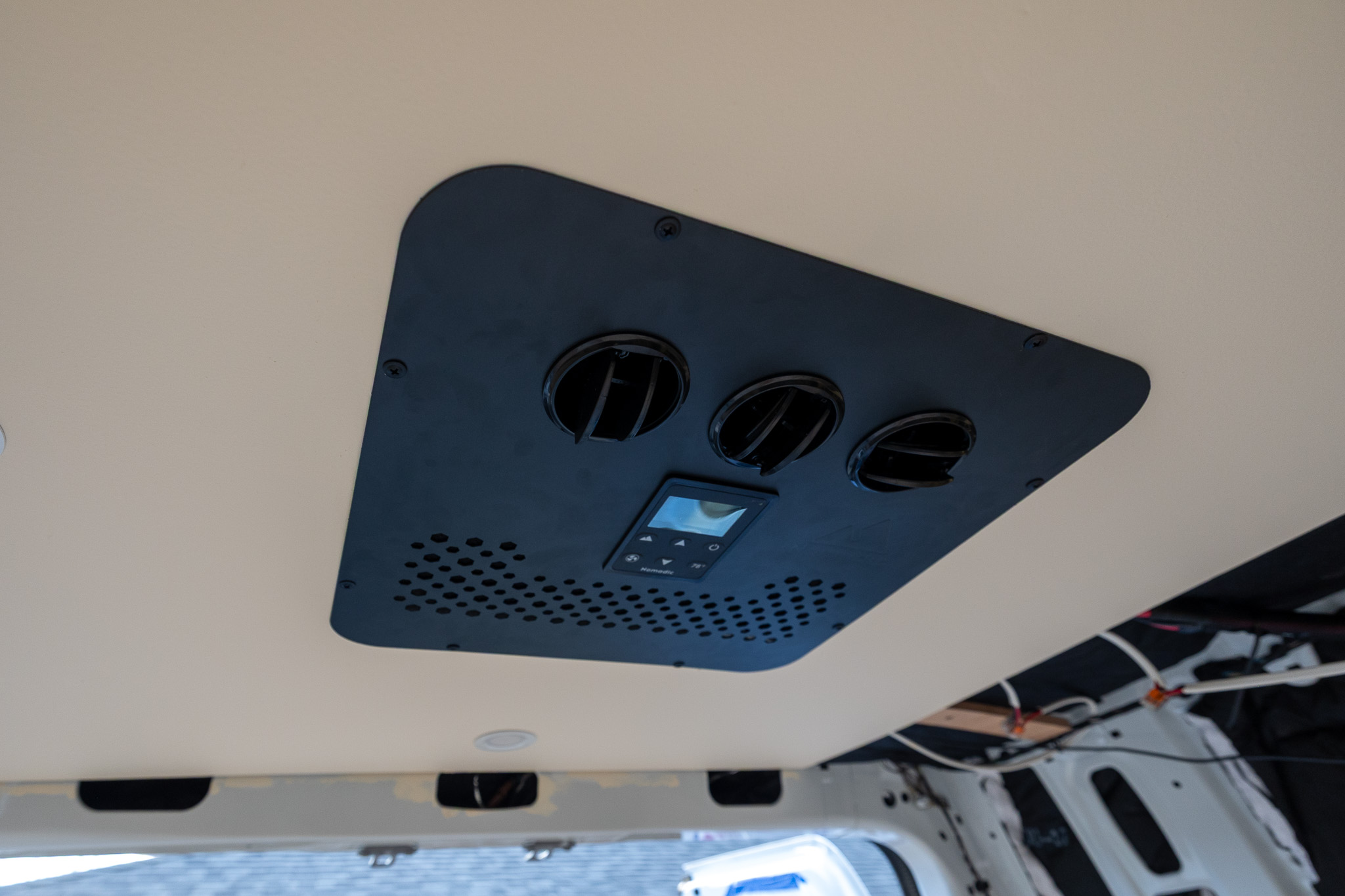

The Nomadic X2 comes with a faceplate, which makes finishing and framing simple! Just cut out the air conditioning vent from your ceiling, and install the faceplate with the screws into your roof!

๐Ÿ’ก There is some lee-way around your cut, which the face frame will cover; however, ensure that you don’t cut too much to where your faceplate doesn’t cover it. It’s always better to cut less!

Wiring the AC

We used the included wire from Orion, which comes fused. All we needed to do was connect the positive and negative wires it to our lynx distributor and all is done! Very simple!

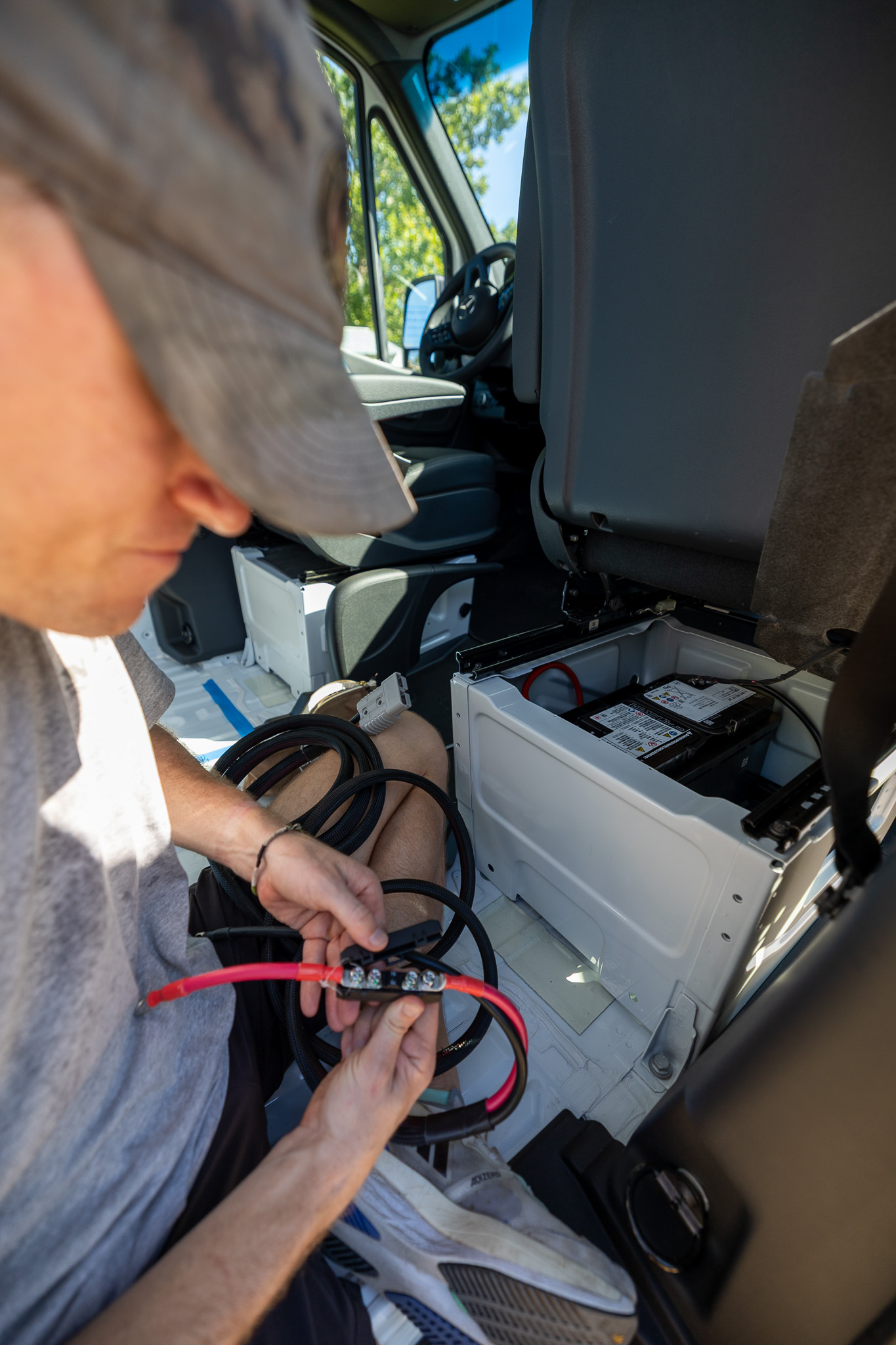

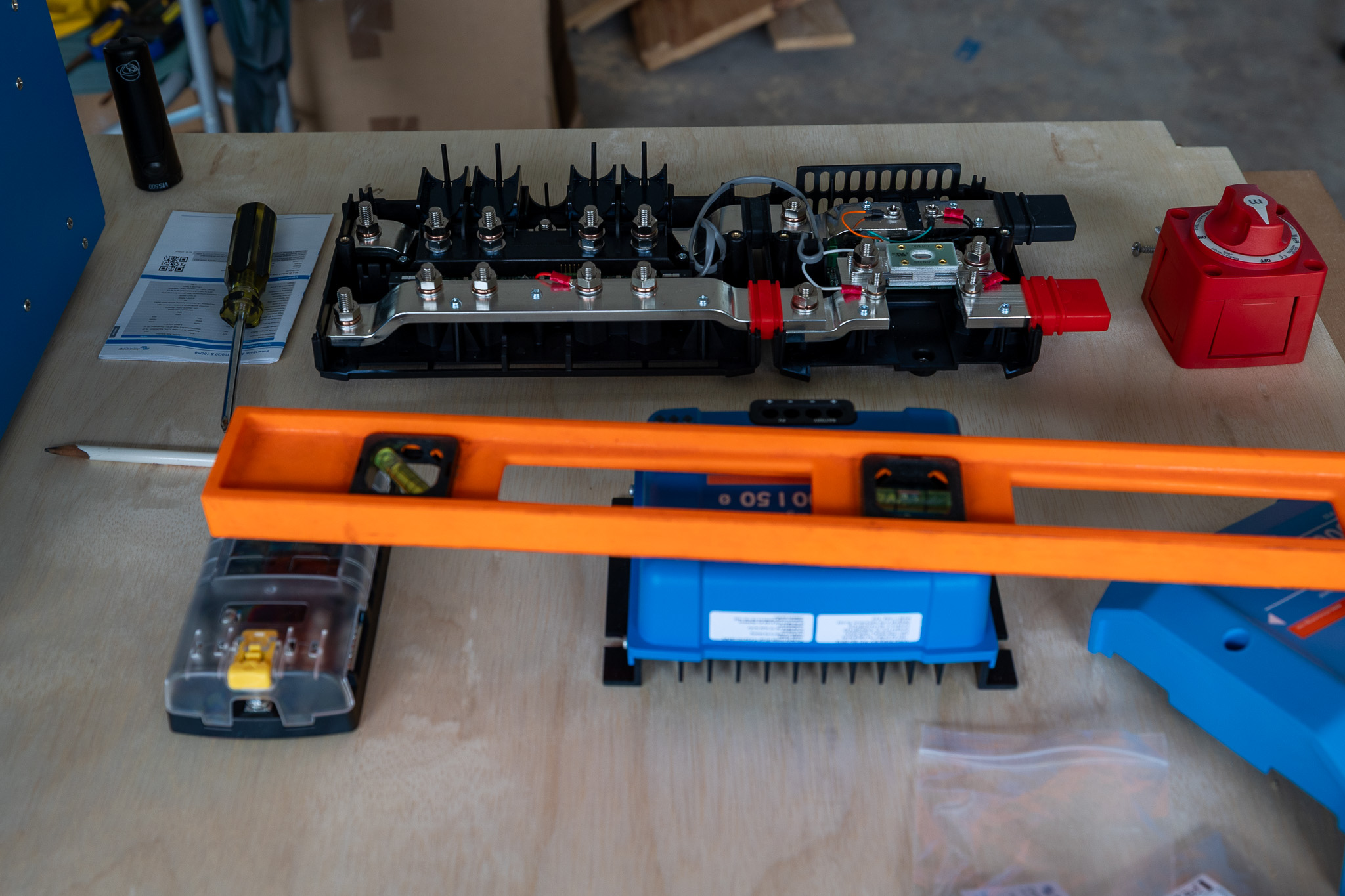

Laying out our Lynx distributor and planning for all connections, including this Air Con connection.

โšก๏ธ Ensure youโ€™re using the appropriate fuse, for us thats a 70A fuse.

Living with our Nomadic x2 12V AC, would we purchase it again?

We’ve been living in our van for three months now, and we can fully say we are very satisfied with our Nomadic X2 Air Conditioner. Here are some of the things that have worked out.

  1. It’s extremely low power. We’ve run it all night and only lost 5% of our batteries, which equates to roughly 35 amp hours.
  2. Its location above our bed cools the bedย significantly. When running it at night, the bed is very temperate because the AC is directly on top of where we sleep. If we had it upfront or mid-way through the van, the van would not nearly be as temperate! We strategically chose to locate our Nomadic X2 Air Conditioner above our bed so we would be cool at night. That being said, it doesn’t cool the entire van very well. We are still happy with it, regardless.
  3. It helps keep our dog, Ollie, cool. We’ve had to leave Ollie in our van quite a few times throughout the first few months on the road, and keeping the air conditioner on has been an enormous help as we know she stays comfortable.

Watch our install on YouTube

FAQ

Let us know if you have any questions in the comments below!

The ups, downs, and everything in between, we share it all. If you like what you see, there are lots of ways to show your support and say thanks! The easiest way to support our work is by commenting on this post, liking and sharing our content on Facebook, and pinning our content on Pinterest. Itโ€™s a small way to say thank you that goes a long way!


Posted

March 25, 2025

in

Van Build, Van Life

by

Jennifer Johnson

Tags:

Comments

3 responses to “Our Guide to RESEARCHING and INSTALLING a 12V Van Air Conditioner”

  1. Luke Byrne Avatar
    Luke Byrne
    March 31, 2025

    With all the blackout curtains you have has that helped cool the entire Van betterโ€ฆ.dont want to freeze just be comfortableโ€ฆ.

    Reply
  2. torquethatbolt Avatar
    torquethatbolt
    June 16, 2025

    This is the only blog post I could find with a DIY install. Thanks for posting.

    I did this install today and Iโ€™m confused about the mounting bolt torque.

    Did you really only hand-tighten the bolts? Did the split lock washers even engage? The foam compresses quite a bit before the required torque is reached, way more than I expected. Curious if you left it loose and if youโ€™ve had any issues.

    Did you support the rear of the AC with the โ€œleveling foamโ€?

    Reply
    1. Elliot Schoenfeld Avatar
      Elliot Schoenfeld
      June 17, 2025

      Thanks for reading!

      Yes, I did only hand-tighten the bolts. I found that if I started over-tightening them, they’d start unscrewing from the actual A/C.

      It wasn’t loose though, just snug, and we also used the leveling foam to keep it snug. You can watch our YouTube video on the install and that may help too. For the leveling foam, I cut out pieces of the ridges so it would lay as flat as possible.

      It’s been totally fine on the road so far. We’ve traveled for 6 months, and had some really high wind zones where the van was pushed considerably. We’ve never felt the AC was moving or not secure. Actually never thought about it at all as it is working great ๐Ÿ™‚

      Hope this helps, let me know if you have any follow up questions. Best of luck!
